Single Squat Toilet Cavity Vacuum Public Toilet System

Single Squat Toilet Cavity Vacuum Public Toilet System

1. Brief introduction:

Single Squat Toilet Cavity Vacuum Public Toilet System is more and more popular in scenic spots, rural areas, construction sites, guard booths, parks, public transportation, etc.

The cavity vacuum system has the advantages of saving water, odorless, preventing epidemics, and quickly installation.

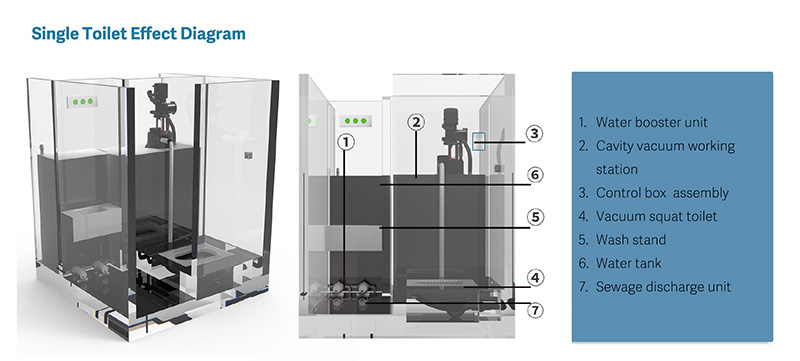

2. Core configuration lists of single squat toilet:

3. Main technical parameters of single squat toilet vacuum system:

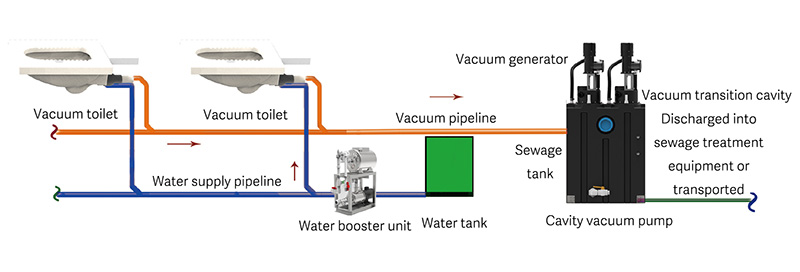

4. Working principal of cavity vacuum toilet:

After finishing using the toilet, press the flush button (or wireless button), and the vacuum toilet will start high-pressure flushing. After a few seconds, the vacuum generator will start working, quickly generating a vacuum in the vacuum transition chamber and the vacuum pipe, sucking the feces and flushing water in the vacuum toilet into the vacuum transition chamber, and under the action of gravity, they fall into the sewage tank (black water tank). The valve plate of the vacuum transition chamber will automatically close, blocking the odor in the sewage tank from entering the pipe. The vacuum toilet will start flushing again to form a water seal, completing a toilet process.

5. Advantages of cavity vacuum toilet:

• Water Saving: Since cavity vacuum toilets consume only 0.5-0.8 liters of water per flush, far less than the 6 liters per flush of water-flush toilets, the water savings are significant for public use.
• Odorless: Cavity vacuum toilets isolate odors through negative pressure, maintaining a constant negative pressure in the pipes. This vacuum toilet not only removes fecal matter and urine, but also removes a large amount of air (odor), ensuring an odor-free bathroom.
• Epidemic Prevention: Cavity vacuum toilets utilize a negative pressure suction and discharge mechanism, which not only removes fecal matter and urine from the toilet fixture but also removes a large amount of air (odor) surrounding the fixture, completely eliminating the source of infection through fecal-oral aerosol transmission.
• Ready-to-use: Cavity vacuum toilets have built-in sewage and water tanks on the main side, making them ready for immediate use upon power-up. The sewage in the tank is pressure-transported to a nearby septic tank, sewage tank, or dump truck.
