1. Brief introduction:

This integrated vacuum toilet is suitable for both new and old locomotives or railway coaches. Designed based on the technical requirements and operating conditions of locomotive integrated toilets, it utilizes a complete vacuum toilet collection system.

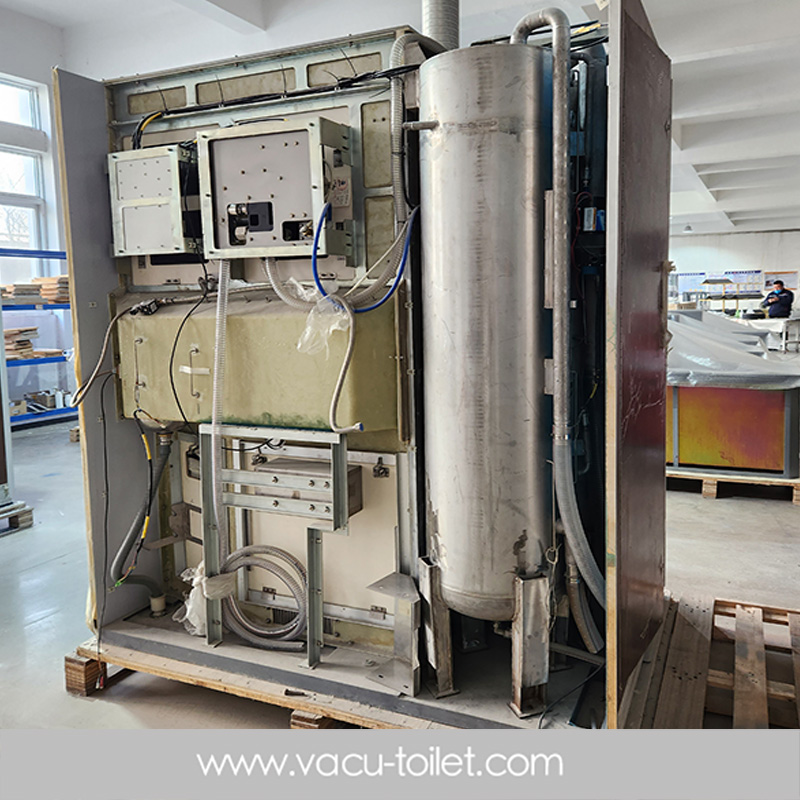

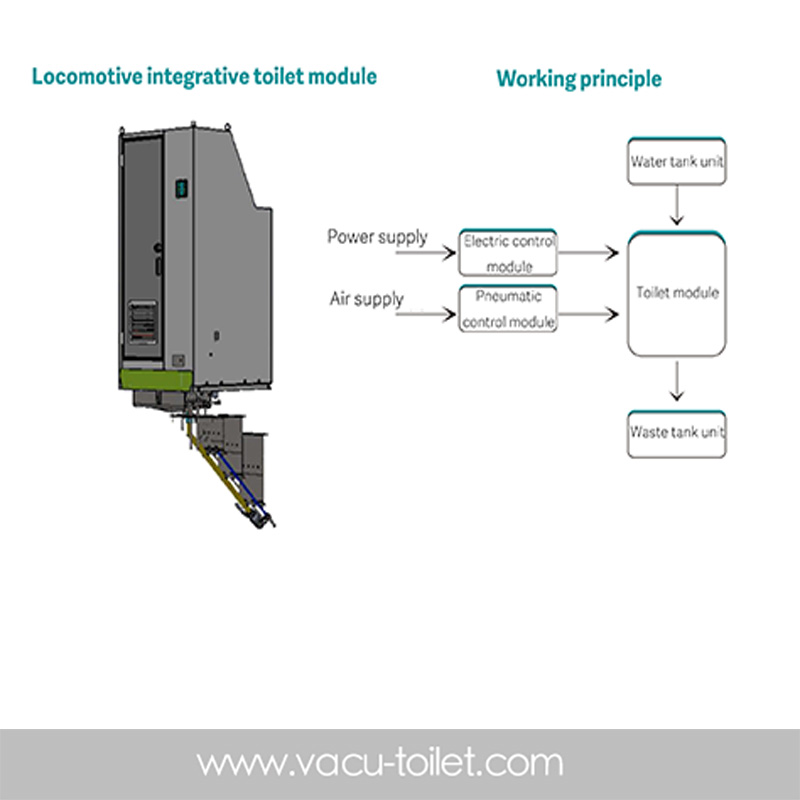

This vacuum toilet utilizes a split-frame structure, integrating a water tank module, waste tank module, vacuum toilet collection module, and control system module. It meets all strength and rigidity requirements for overall installation and disassembly, as well as normal locomotive operation.

Railway WC/rest room module is an independent toilet system, whose internal components could be assembled before ex works. The module is designed with hoist holes on the top so that the module could be overall lifting during transportation and installation. The rest room module will be mounted onto the train quickly on the preserved area of the train, which greatly improve the interior construction efficiency and make it easier for train repair or refurbishment.

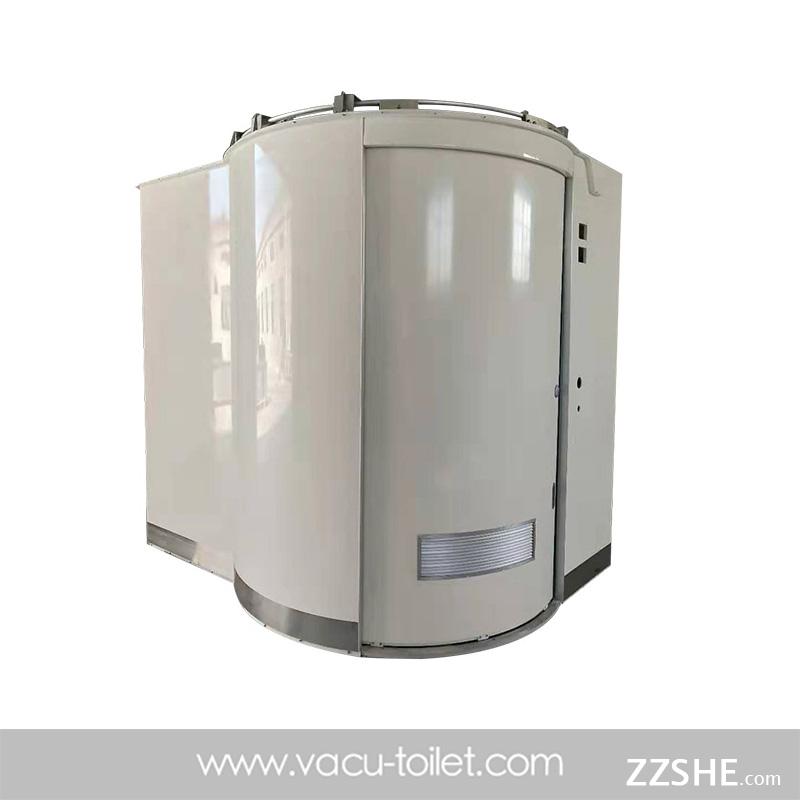

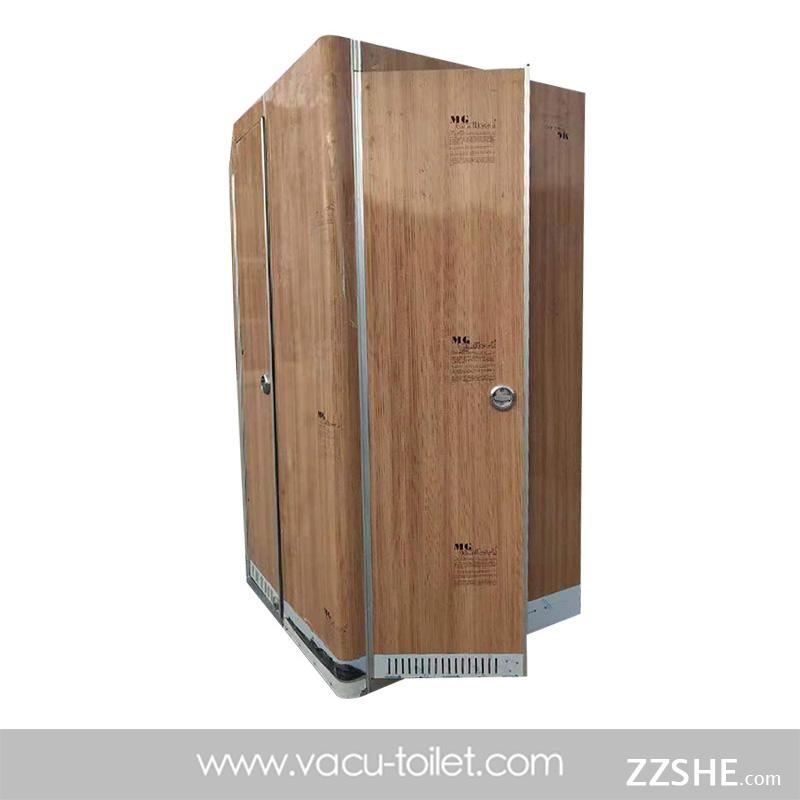

Rest room module is mainly composed of a FPR made compartment, inside functional equipment, interfaces, etc. The FPR compartment are mounted with roof, floor, side walls, which composed of the inner room space. The inside functional equipment includes toilet, wash resin, lighting, mirror, handrail, dustbin, clothing hook, etc. The toilet system could be vacuum toilet or normal pressure toilet. It could be seat toilet or squatting toilet. The interfaces include the mechanical mounting interfaces, electricity interfaces, air interfaces and water supply interfaces.

We could produce the rest room module according to customer’s specific requirements and the module is designed tidy and beautiful and in harmony with the train overall interiors design.

2.Typical equipment materials list:

3. Technical parameters:

4.  Advantages and Features:

• Easy Maintenance: Maintenance is simple and easy, enabling "replace and play." Simply remove the faulty module and replace it with a new one. All components can be easily disassembled and repaired on the vehicle, without removing the roof.
• Easy to Use: The simple, easy-to-understand display panel provides a "what you see is what you get" experience. The integrated "one-touch emptying" button allows users to operate the system with minimal training.
• Compact Structure: The water tank and waste tank are positioned below, reducing the load on the toilet structure and improving its strength and rigidity.
• Comfortable Design: The squat toilet and toilet floor are designed to be same level, eliminating steps. This fully utilizes the compact space of a locomotive toilet and effectively maintains headroom, creating an aesthetically pleasing and user-friendly design.
• Enhanced Unit Design: The vacuum tank structure with an enhanced vacuum unit offers high space utilization and low gas consumption. Therefore, the use of "enhanced vacuum unit vacuum retention" technology is a reasonable and mature technology for locomotives, resulting in high system reliability.
• High Waste Tank Efficiency: Due to the locomotive toilet's compact structure, the enhanced vacuum unit maximizes waste tank capacity utilization. The original standard allowed 40 uses, but after the improvements, the same waste tank capacity can be used 55 times.
• Energy-Saving Control: The system's control program has been optimized, enabling two vacuum control modes via a waste tank high-level switch to achieve energy savings.

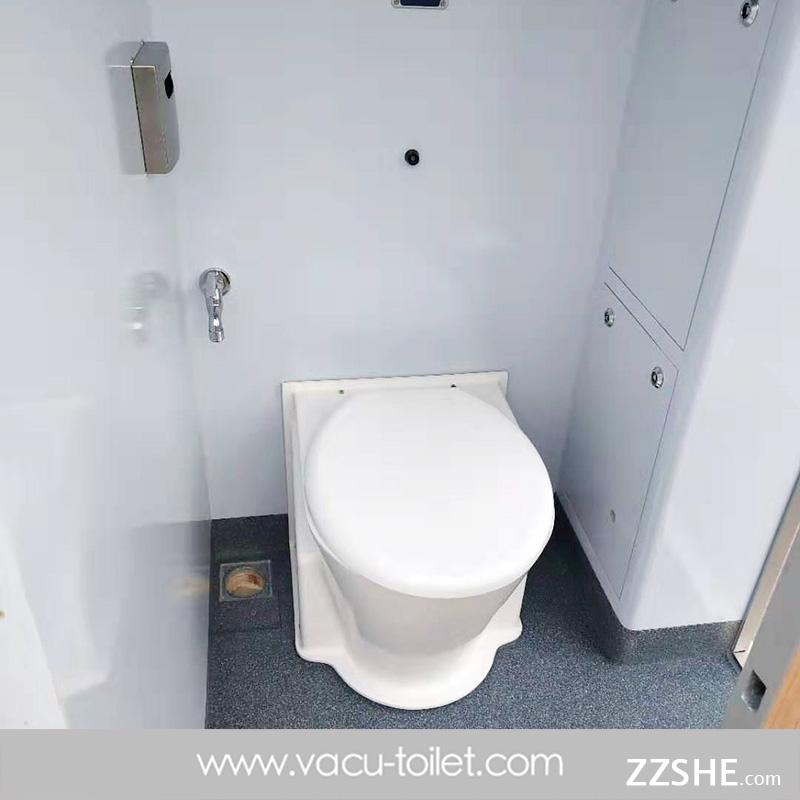

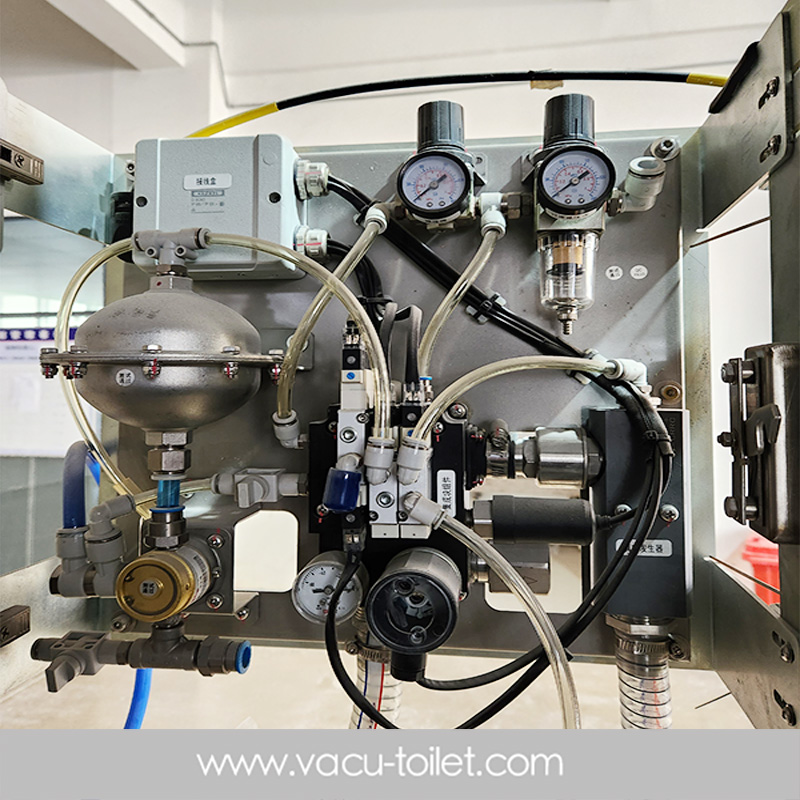

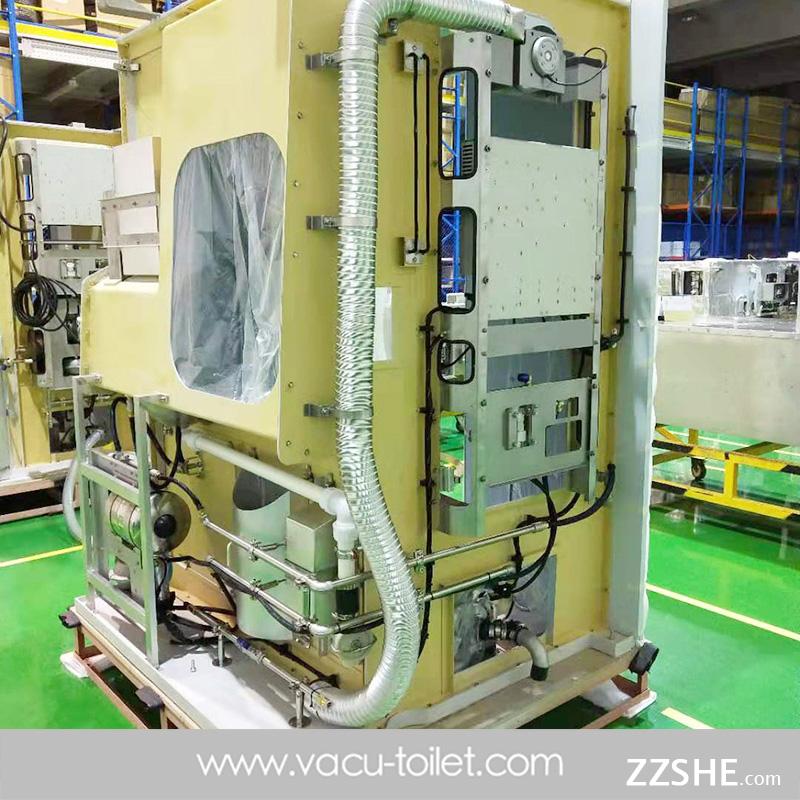

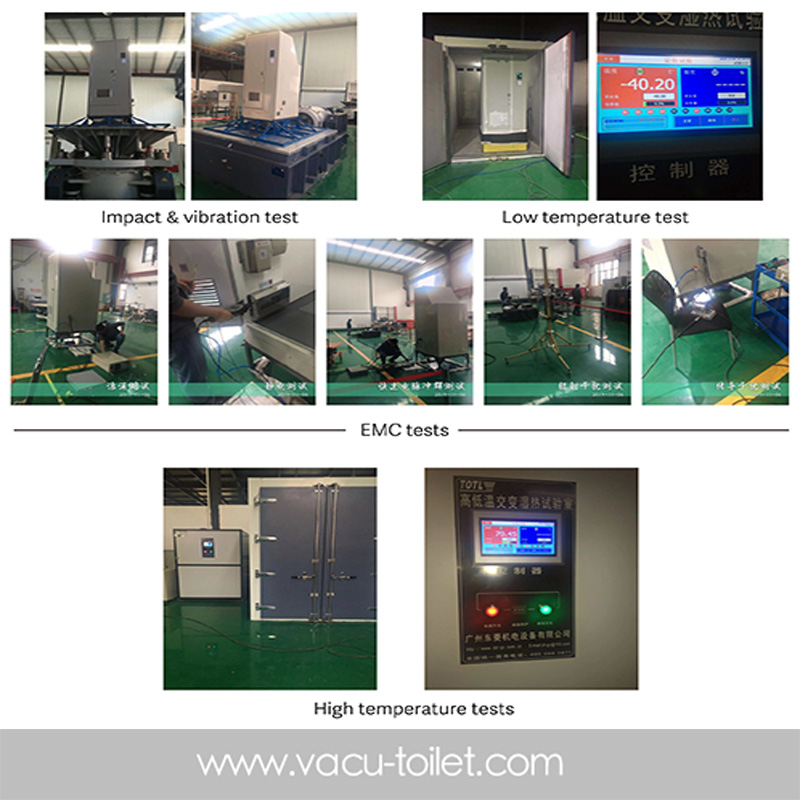

5. Detail photos:
