Compact Type Vacuum Toilet Integrated Vacuum Toilet Module For Train

Compact Type Vacuum Toilet Integrated Vacuum Toilet Module For Train

1. Brief introduction:

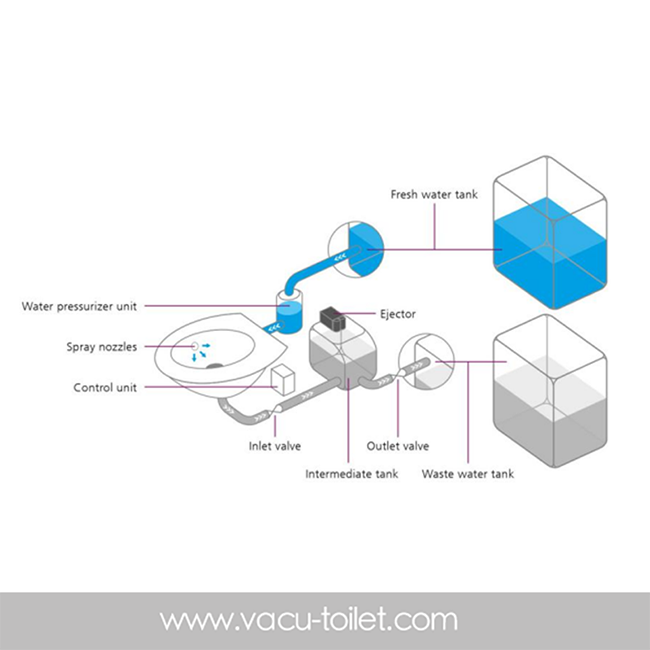

Our Compact Type Vacuum Toilet Unit adopts advanced vacuum suction and intelligent pressure control technology. The integrated design with a built-in intermediate vacuum tank enables automatic flushing, waste collection and sewage delivery, delivering stable and reliable performance for space-limited mobile installation environments.

This unit achieves ultra water-saving performance with only 0.4–0.5L fresh water consumed per flush. Supported by 6–7 bar compressed air and expanded air-assisted flushing, it thoroughly cleans the toilet bowl and conveys waste to the wastewater tank. The fully sealed vacuum structure effectively eliminates odor backflow and cross-contamination, maintaining a hygienic and clean using environment.

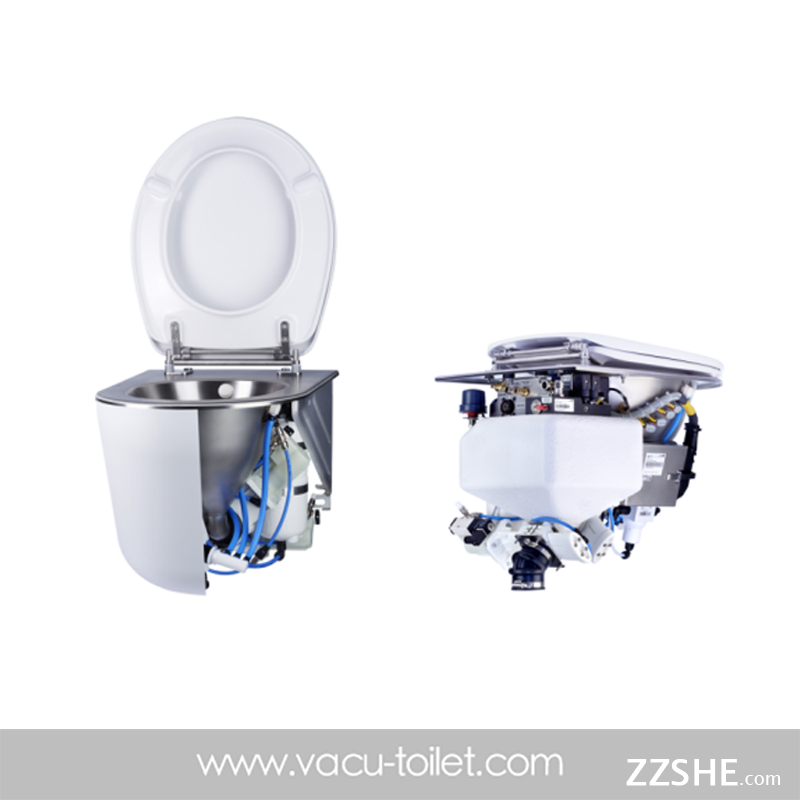

Powered by 24V DC (±30% tolerance), the toilet features low energy consumption with 2.2W standby power and 12W operating power. Weighing merely 18kg and equipped with compact overall dimensions, the lightweight integrated structure allows flexible and easy installation for various narrow cabin spaces.

Complying strictly with EN 45545 railway fire safety standards, this vacuum toilet boasts excellent fire resistance and durability. The optimized structural design reduces failure points and minimizes MTTR, effectively lowering maintenance costs and equipment downtime. It is a cost-effective, long-service-life sanitation solution for various mobile transportation facilities.

2. Core Advantages

• Compact Integrated Structure: Lightweight all-in-one design with small footprint, adaptable to narrow installation spaces
• Ultra Water-saving: Low flush water consumption of 0.4–0.5L, energy-saving and eco-friendly
• Low Power Operation: 24V DC low-voltage power supply with ultra-low standby and operating power
• Odor-free & Sanitary: Fully sealed vacuum system prevents odor backflow and ensures hygiene
• Low Maintenance: Stable structure with minimal failures and short maintenance cycle
• Standard Compliance: Meets EN 45545 railway fire safety standards for safe transit use

3. Technical Parameters

4. Application Scenarios

Suitable for multiple mobile scenarios including railway trains, passenger coaches, marine vessels, mobile restrooms and special engineering vehicles, serving diverse mobile sanitation and transportation equipment needs.
