Train Vacuum Toilet

Marine Toilet Marine Vacuum Toilet Ship Vacuum Toilet

Category： Train Vacuum Toilet
Views：0
Application: marine vacuum toilet
Net Weight:Approx. 9.5 kg
Dimension (Without Seat):540 (W) × 365 (D) × 373 (H) mm
Power Consumption:2.2W (Standby) / 150W (Operational)
INQUIRY EMAIL

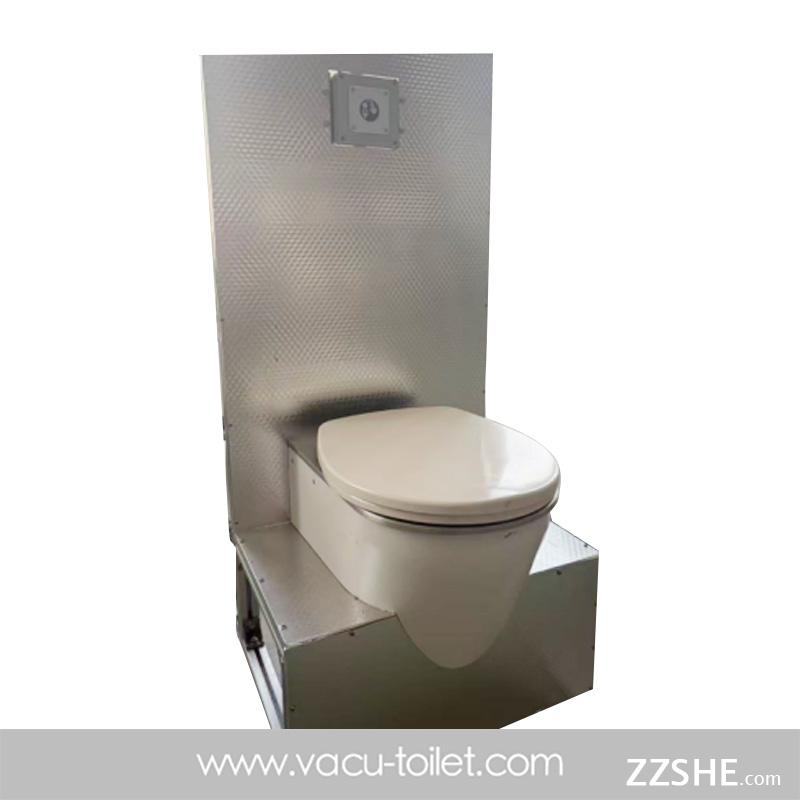

Marine Toilet Marine Vacuum Toilet Ship Vacuum Toilet

1. Product Description

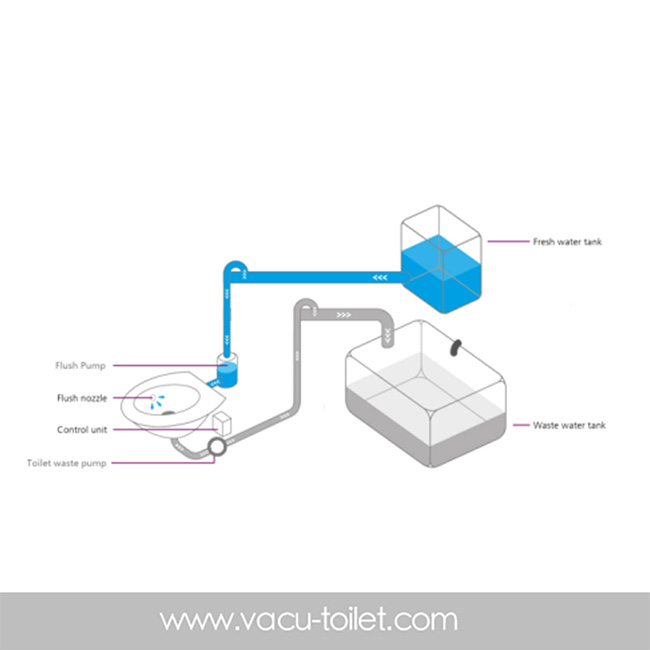

Our Marine Vacuum Toilet upgrades traditional gravity-flush marine toilet structures with reliable vacuum suction flushing technology. It enables fast bowl cleaning and complete waste discharge via seawater flushing, effectively solving common drawbacks of conventional ship toilets including high water consumption, odor leakage and bulky installation. With air-free operation and simplified pipeline design, it adapts perfectly to various ship operating environments with stable and low-maintenance performance.

Built with high-strength salt-corrosion resistant materials, this marine vacuum toilet is lightweight and space-saving, supporting flexible deck and wall-mounted installation. The fully sealed vacuum pipeline system prevents sewage backflow and odor diffusion, ensuring a hygienic onboard restroom environment. Certified with EN 45545 fire safety standard, it guarantees superior safety for long-term marine use.

The unit supports dual waste discharge modes (onboard wastewater tank storage or compliant overboard discharge), fitting all types of marine vessels. It is a cost-effective, low-maintenance and high-reliability sanitation solution for commercial ships, leisure yachts and offshore facilities.

2. Technical Parameters

Item	Specification
Product Type	Western Style Marine Vacuum Toilet / Ship Vacuum Toilet
Net Weight	Approx. 9.5 kg
Dimension (Without Seat)	540 (W) × 365 (D) × 373 (H) mm
Power Supply	24 V DC (±30% tolerance)
Power Consumption	2.2W (Standby) / 150W (Operational)
Flushing Water Consumption	Approx. 1.5L seawater per flush
Air Consumption	0L expanded air, compressed air free
Certification Standard	EN 45545

3. Core Advantages

Premium Vacuum Flushing System: Adopts negative pressure suction technology for fast, thorough flushing, no residual dirt, effectively avoiding odor backflow and bacterial growth.
Ultra-low Water & Energy Saving: Only 1.5L seawater per flush, no compressed/expanded air required; low power design reduces ship energy consumption.
Strong Environmental Adaptability: 24V DC wide voltage design adapts to unstable ship power supply; corrosion-resistant body suits saltwater and humid marine conditions.
Compact & Easy Installation: Lightweight and mini size structure saves onboard space, compatible with wall-mounted and deck installation.
High Safety & Compliance: Meets EN 45545 fire safety standard, fully compliant with international marine sanitation and safety regulations.
