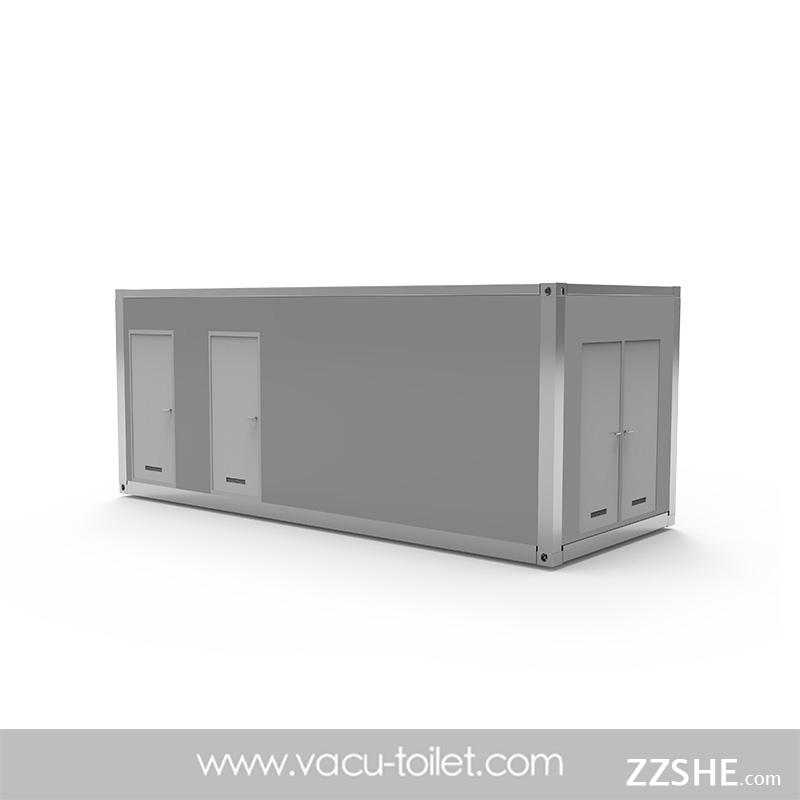

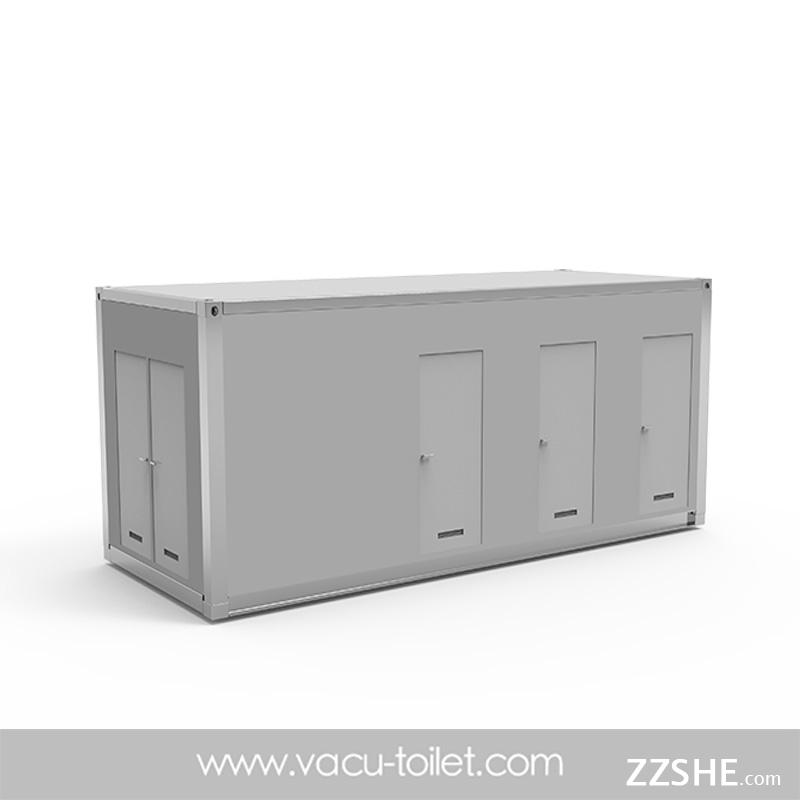

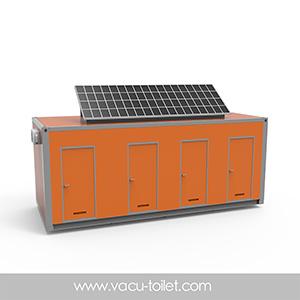

1. Brief introduction:

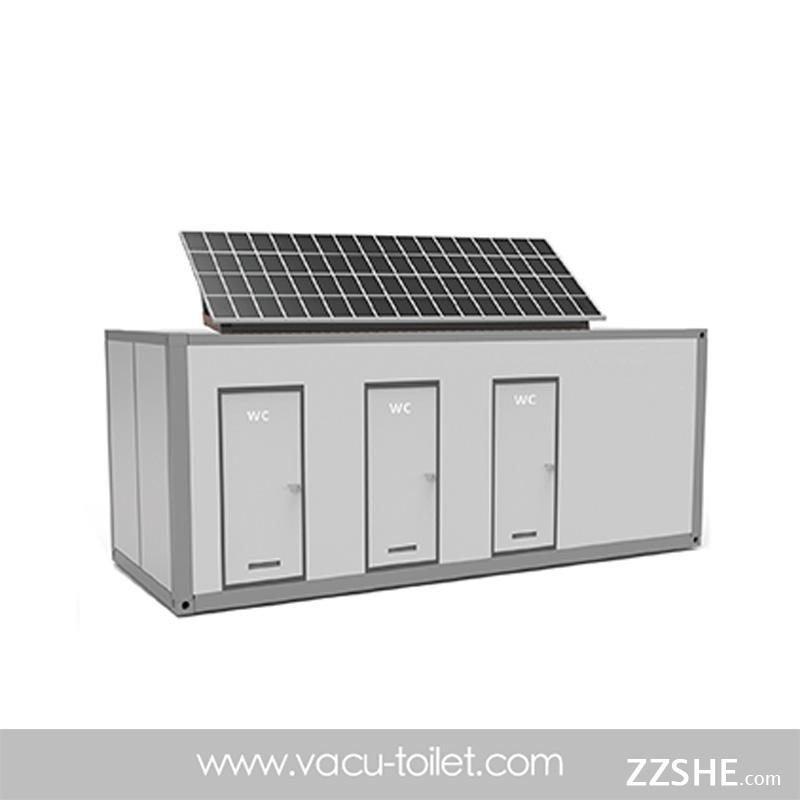

Type I vacuum toilet unit mainly consists of four vacuum squat toilets, one disabled vacuum toilet, a washbasin, and a mop pool. Each toilet is equipped with a triangular sink, UV disinfection lamp, and flushing faucet. The pump room is equipped with a vacuum workstation, water booster unit, water tank, sewage tank, air conditioner, and solar cell array.

This containerized toilet unit adopts modular design combining vacuum collection technology. It saves up to 90% of water used by conventional gravity flushing toilets.  It is easy to be transported, environmental friendly, easy to clean and easy to maintain. It is widely used for tourist attractions,events, festivals, fairs, humanitarian aid, and military operations. The vacuum bathroom cabin, customized and developed for Islamic culture, fully considers the toilet habits and characteristics of the Islamic people.

The vacuum toilet unit has integrated various equipment as vacuum squat toilet, vacuum sit toilet, urinals, vacuum lifts, as well as various humanized equipment, water tanks, sewage tanks, and etc. The equipment configuration methods could be customized according to customer requirements.

2. Core components parameters:

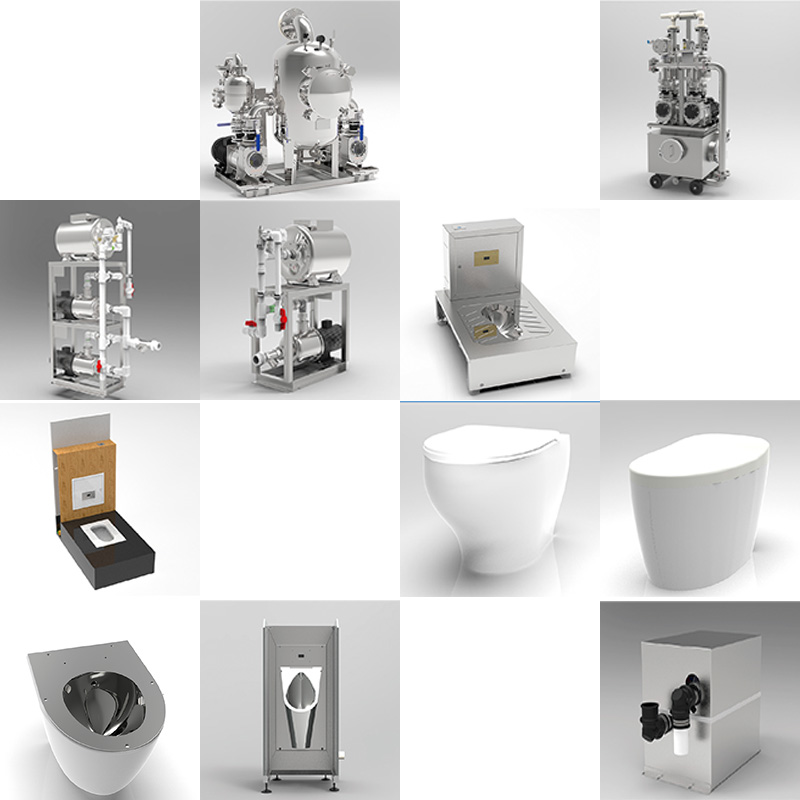

2.1 Online vacuum work station

Sizes	1525X1250X1610mm
Power	5.5KW*2=11KW, AC380V, 50HZ
Capacity	Max. 35 units public vacuum toilets

2.2 Online vacuum work station 2

Sizes	970X870X1913mm
Power	3.0KW*2=611KW, AC380V, 50HZ
Capacity	Max. 13 units public vacuum toilets

2.3 Water booster unit 1:

Sizes	900X445X11268mm
Power	1.5KW*2, AC220V, 50HZ
Pressure and flow	4kg/2X4=8m³

2.4 Water booster unit 2:

Sizes	807X483X951mm
Power	1.5KW*1, AC220V, 50HZ
Pressure and flow	4kg/1X4=4m³

2.5 Stainess vacuum squat toilet

Sizes	620X456X300mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.6 Ceramic vacuum squat toilet

Sizes	650X530X267mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.7 Ceramic vacuum squat toilet 2

Sizes	610X400X420mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.8 Ceramic vacuum squat toilet 3

Sizes	665X400X450mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.9 Stainless steel vacuum toilet

Sizes	515X300X407mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.10 Stainless steel vacuum urinal

Sizes	360X390X600mm
Control method	Bluetooth controller
Water consumption each flush	0.5～0.8L
Electricity consumption each flush	<0.005KW.h

2.11 Stainless steel lifter

Sizes	515X300X407
Control method	Bluetooth controller
Volume	20L

3. Working principles:

When the user presses the flush button (or through the infrared sensor switch), the controller automatically opens the vacuum drain valve and executes the flush sequence. The sewage in the vacuum toilet is sucked into the vacuum pipe. During the suction process, a small amount of water is used to clean the inner wall of the toilet. When the suction is completed, the vacuum drain valve automatically closes. The sewage is sucked into the vacuum workstation, crushed, and then discharged into the sewage tank under pressure.

4. Why choose vacuum toilet cabin?

4.1. Ultra Water Efficiency

A single flush uses only 0.5 to 0.8 liters of water, achieving up to 90% savings compared to conventional toilets. The flush volume is remotely adjustable via Bluetooth, with each efficient cycle lasting just 10 seconds.

4.2. Odor-Free Operation

Powerful negative pressure instantly evacuates both waste and the surrounding air, purifying the cabin atmosphere in seconds. This creates an effective odor-lock, ensuring a consistently pleasant environment.

4.3. High-Frequency Capacity

Engineered for demanding environments, our vacuum toilets support continuous, high-frequency use with a capacity of over 90 flushes per hour, eliminating user wait times.

4.4. Advanced Hygiene & Epidemic Prevention

The system provides dual-layer protection. The negative pressure flush contains aerosols, while an integrated ultraviolet sterilization device actively disinfects the air inside the cabin, promoting public health.

4.5. System Self-Protection

A four-tiered protection system safeguards the vacuum mechanism from foreign objects, preventing damage and ensuring long-term, reliable operation with minimal maintenance.

4.6. Highly Integrated Design

Featuring a fully enclosed discharge principle, the cabin is a compact, pre-assembled unit that integrates the vacuum workstation, water booster, tanks, and toilets into a single, safe, and reliable system.

4.7. Intelligent Monitoring & Control

An intelligent terminal controller, combined with a unique GPRS module and cloud platform, enables real-time remote monitoring of all system parameters, allowing for proactive management and diagnostics.

4.8. Modular & Flexible Expansion

We provide versatile, modular expansion solutions. Vacuum bathroom units can be deployed individually or combined, with flexible water and sewage tank configurations to meet evolving capacity needs.

4.9. Exceptional Energy Savings

Each flush consumes a minimal 0.005 kWh. The cabin further reduces its energy footprint through solar power for lighting and ventilation, backed by an integrated power supply from the pump room.
