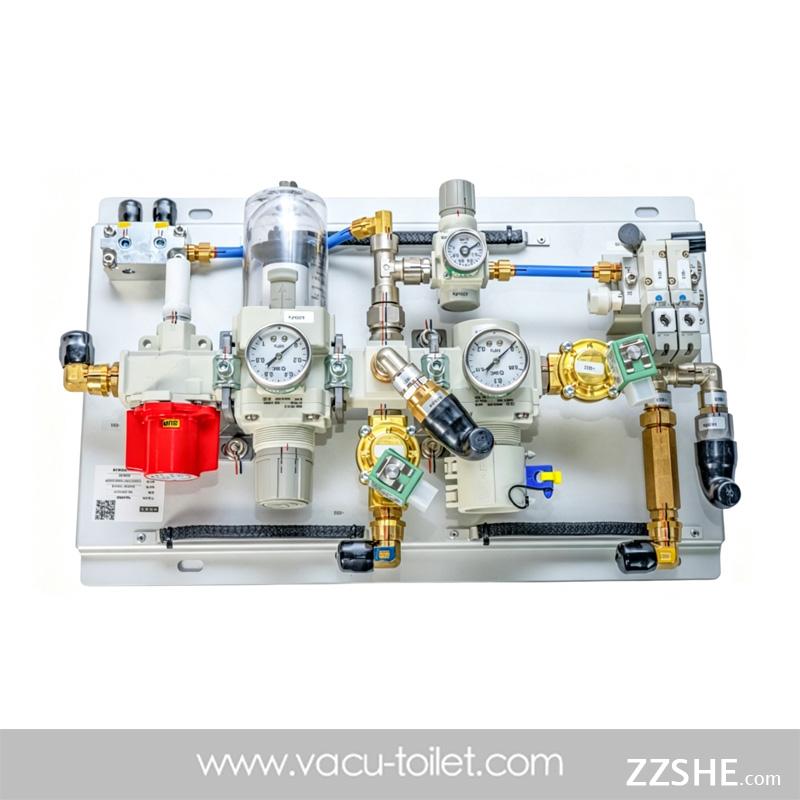

Vacuum Toilet Pneumatic Control Panel Air Control Panel

1. Brief introduction:

Pneumatic Control Panel (also named Air Control Panel) is a core pneumatic control component specially designed for vacuum toilet systems, widely applied in rail transit and mobile sanitation equipment. Featuring compact structure and stable performance, this unit undertakes centralized air pressure regulation and system operation control for vacuum toilets.

Equipped with independent in-house R&D and design capabilities, we support full customized solutions per customers’ actual demands. The panel is highly compatible and can perfectly replace original standard systems, realizing seamless upgrade and replacement without extra modification costs. With compliance with EU rail fire safety standards, it ensures high reliability and long service life for harsh operating environments.

2. General Technical Specifications

Item	Specification
Product Application	Vacuum Toilet System
Weight (Western Style Toilet Version)	Approx. 9.5 kg
Power Supply	24 V DC (+/- 30%)
Working Pressure	Compressed Air 6-10bar
Power Consumption	2.2W (Standby) / 15W (Operational)
Compliance Standard	EN 45545 (Rail Vehicle Fire Safety Standard)

3. Core Advantages

Customizable Design: Professional customized R&D and design to match diverse system and installation requirements.
Perfect Compatibility: Direct replacement for customers’ original vacuum toilet pneumatic control systems, easy installation and plug-and-play.
Compact & Durable: Miniature and integrated structure with low power consumption, stable operation for long-term use.
Standard Compliance: Strictly manufactured in accordance with EN 45545 rail safety standards, safe and reliable for transit equipment.
